A-dec Dental Lights

A clearer view of tooth surfaces. Reduced eyestrain. Less fatigue.

A-dec 500 LED Dental Light

Smart. Refined. True.

The A-dec 500 LED dental light improves your ability to see inside the oral cavity and provides unparalleled ergonomics.

It delivers higher illumination to maximize vision from any position. The high color rendering index enables you to see colors accurately for better tissue diagnosis. The innovative cure-safe mode provides bright illumination without premature curing.

Designed to meet the ergonomic needs of the dental team, the A-dec 500 LED dental light positions easily and comfortably. The advanced lighting design minimizes shadowing and provides proper contrast to help reduce eye strain and fatigue.

Dentists and designers from around the world recognize the A-dec 500 LED dental light for excellence in design and outstanding performance.

A-dec-LED-Dental-Light

Benefits

Improved vision: The A-dec 500 LED dental light floods the oral cavity with light. Most dental lights today only provide a light intensity of up to 25,000 lux. The A-dec 500 LED dental light provides 30,000 lux, the highest level of illumination recommended by dental operatory ergonomic specialists.

Accurate tissue analysis: By producing a Color Rendering Index of 94 at 5,000K, A-dec has achieved a new breed of LED that mimics nature. See tissue in pure light for accurate, consistent diagnoses.

Illumination without curing: The cure-safe mode on the A-dec 500 LED dental light provides brilliant yellow light at 25,000 lux intensity, enabling the dental team to work effectively without curing photo-initiated resins.

Unparalleled ergonomics: Designed for comfort, the A-dec 500 LED dental light easily glides into the exact position needed for optimal illumination during any procedure.

Sustained eye health: A uniform light pattern with feathered edges minimizes shadowing and reduces eye strain and fatigue.

Low heat, no noise: Because the A-dec 500 LED dental light doesn't emit heat or require a fan for cooling, it's both comfortable and quiet.

Low cost of ownership: The A-dec 500 LED dental light consumes 80% less power than halogen lights, with a life expectancy of 20 years.

Product Details

  • Three-axis, 540º horizontal rotation light head adjustment. Provides unlimited positioning.
  • Three light intensity settings. Features three intensity settings of 15,000, 25,000, and 30,000 lux.
  • Cure-safe mode. Enables the dental team to work effectively at 25,000 lux illumination without curing photo-initiated resins.
  • Auto On/Off function. Turns the dental light on automatically when the chair reaches the treatment position and turns it off in the entry/exit position when combined with the A-dec 500, A-dec 400, A-dec 300, A-dec 200 and Performer systems.
  • Remote touchpad activation. Allows you to toggle between settings and turn the dental light on and off without having to touch the light head.
  • Local switching. Enables easy change of mode by the entire dental team when the touchpad is not available.
  • Long-lasting LEDs. Uses about 1/5th the power of a traditional quartz halogen light with a life expectancy of up to 40,000 hours, or nearly 20 years of daily use.

Upgrade to LED:

Easily upgrade your halogen A-dec light to the A-dec 500 LED light. Gain all the advantages of LED over halogen, including 25% more illuminance at one-fifth of the power consumption.

A-dec Dental Equipment Requirements
For a light head upgrade, you must have an A-dec flexarm on an A-dec light manufactured after 1993.

Compatibility exceptions apply for the A-dec Performer dental light. For details, consult with your authorized A-dec Dealer or Customer Service Representative.

Touchpad Control
If your delivery system includes an A-dec touchpad utilizing A-dec's Data Communication System (DCS), all A-dec 500 LED light modes and functions are available from the touchpad. Without an A-dec DCS-compatible touchpad, the A-dec 500 LED dental light is operated via local switching.

Options

Mounting locations:

Chair-mount

  • Radius-style mount for A-dec 500, A-dec 400, A-dec 300 and Performer chairs

Support-side mount

  • Mounts to A-dec 500, A-dec 300, A-dec 200 and Performer support centers

Ceiling-mount

  • Mounts to ceilings from 8' to 12' (2,438 mm to 3,658 mm) in height

Track-mount

  • Mounts to ceilings from 8' to 10' (2,438 mm to 3,078 mm) in height

Wall-mount

  • Folds against the wall when not in use
  • Includes a laminated backboard

Cabinet-mount

  • Folds above a dental cabinet when not in use

A-dec 500 LED Light Brochure

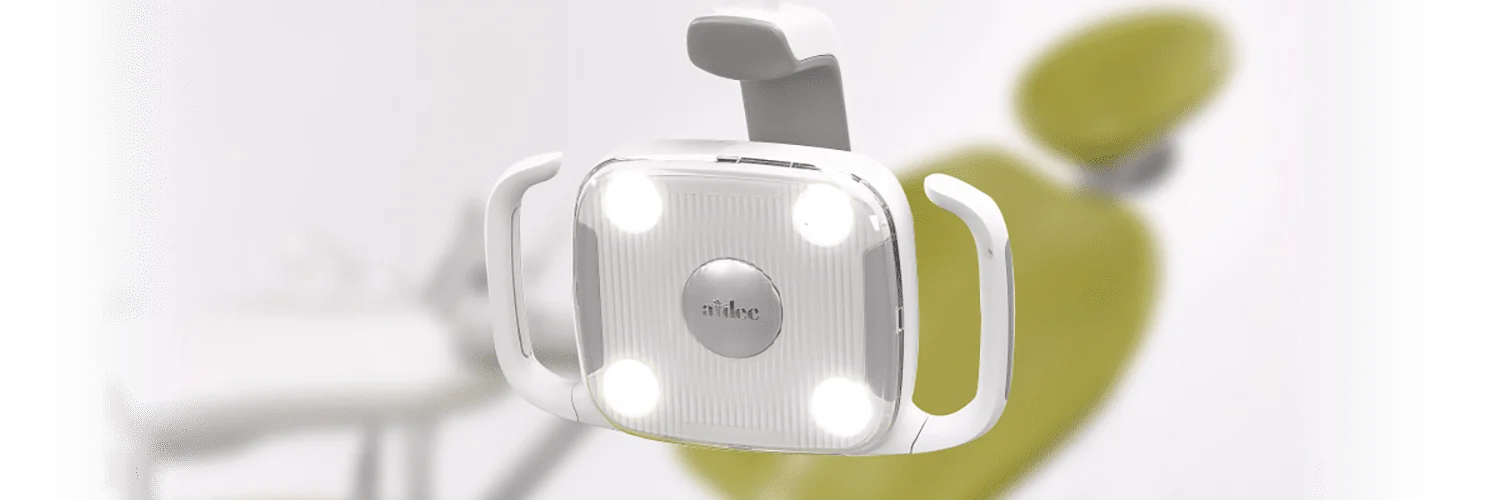

A-dec-300-LED-dental-light

A-dec 300 LED Dental Light

Accurate. Economical. Reliable.

A-dec LED dental lights improve your ability to see inside the oral cavity and provide unparalleled ergonomics.

The A-dec 300 LED dental light was designed specifically for those who want the clarity and accuracy of the A-dec 500 LED dental light, in a simple, economical version that’s anything but a compromise.

Benefits

Improved vision: The A-dec 300 LED dental light floods the oral cavity with light and provides a light intensity of up to 25,000 lux.

Accurate tissue analysis: By producing a Color Rendering Index of 94 at 5,000K, A-dec has achieved a new breed of LED that mimics nature. See tissue in balanced, neutral light for accurate, consistent diagnoses.

Unparalleled ergonomics: Designed for comfort, the A-dec 300 LED dental light easily glides into the exact position needed for optimal illumination during any procedure.

Sustained eye health: A uniform light pattern with feathered edges minimizes shadowing and reduces eye strain and fatigue.

Low heat, no noise: Because the A-dec 300 LED dental light doesn't emit heat or require a fan for cooling, it's both comfortable and quiet.

Low cost of ownership: The A-dec 300 LED dental light consumes 80% less power than halogen lights, with a life expectancy of 20 years.

Product Details

Choose from two A-dec 300 LED dental lights:

  • Integrated with A-dec touchpad (data communication system-DCS). Controlled via push button on light head or through integration with A-dec touchpad.
  • Non-integrated with manual switch. Limited to control via push button on light head. Available on Performer or A-dec 200.

All A-dec 300 LED dental lights feature:

  • Stadium lighting-4 bright white LEDs. Reduces shadowing.
  • Three-axis of rotation including 540º of horizontal light head adjustment. Provides unlimited positioning.
  • Two light intensity settings. Features two intensity settings of 8,000 and 25,000 lux.
  • No radiant heat. Produces 51 BTUs (halogen average 325 BTUs).
  • Composite/low mode. Allows more work time with 8,000 lux (slow cure)
  • Long lifespan. Never change a light bulb. A-dec LED lights have a life expectancy of 40,000 hours.
  • Lights oral cavity, not patient's eyes. 3.8"x 5.7" at 27.6" focal distance (95 mm x 145 mm at 700 mm)

Options

Mounting locations:

Chair-mount

  • Radius-style mount for A-dec 500, A-dec 400, A-dec 300 and Performer chairs

Support-side mount

  • Mounts to A-dec 500, A-dec 300, A-dec 200 and Performer support centers

Ceiling-mount

  • Mounts to ceilings from 8' to 12' (2,438 mm to 3,658 mm) in height

Track-mount

  • Mounts to ceilings from 8' to 10' (2,438 mm to 3,078 mm) in height

Wall-mount

  • Folds against the wall when not in use
  • Includes a laminated backboard

Cabinet-mount

  • Folds above a dental cabinet when not in use

A-dec 300 LED Light Brochure
